Dual Frequency Industrial Ultrasonic Cleaner with PLC

Dual Frequency Industrial Ultrasonic Cleaner with PLC
Name：

￥

RMB
品牌111：

4497
Brand：
型号：

1. Equipped...
Model：
GT SONIC - SD Series industrial ultrasonic cleaner are available in 28 and 40 kHz frequencies for more precise cleaning of rough and fine items. This series has been optimized in detail to greatly enhance user experience. Dimensions can be customized. Oil skimmer & bubbling system & filtration system upon clients’ requirements.

Request Quotation

Project introduction

1. Equipped with PLC Control system (Process parameters settings only could be changed by qualified persons).

2. Dual frequency of 28 and 40 kHz for different cleaning items.

3. Adjustable temperature from 30° to 110°C.

4. Adjustable power from 0 to 100%.

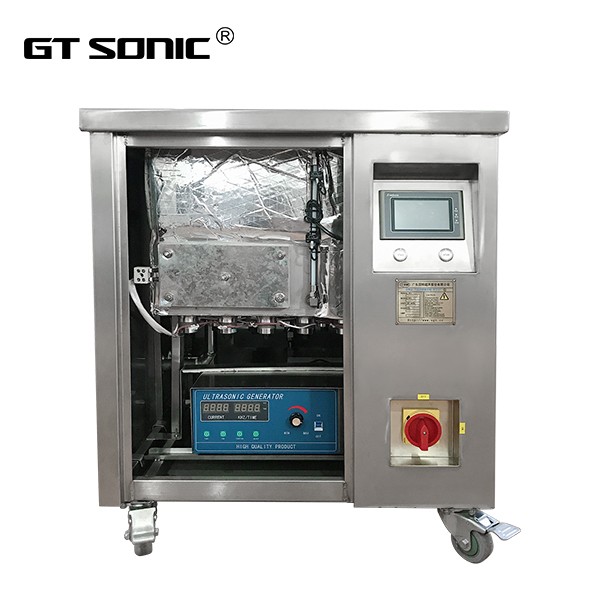

5. Built-in generator for saving space and looking better.

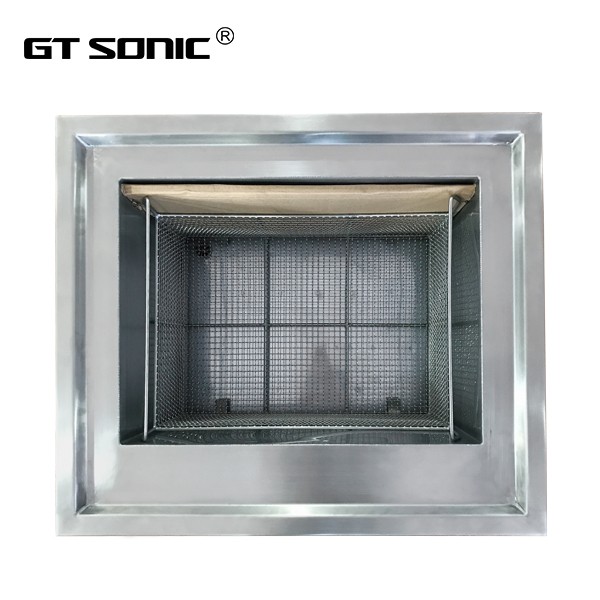

6. Tank is designed with basket holder and overflow protection.

7. Fabricated from heavy gauge stainless steel, acid,alkali and corrosion resistant.

8. Digital display showing real time data is intuitive and controllable.

9. Adopting water level pipe and auto heating control system for prolong service life and ensure safety.

10. Caster with brake, safer and more convenient.

Features

1. Equipped with PLC Control system (Process parameters settings only could be changed by qualified persons).

2. Dual frequency of 28 and 40 kHz for different cleaning items.

3. Adjustable temperature from 30° to 110°C.

4. Adjustable power from 0 to 100%.

5. Built-in generator for saving space and looking better.

6. Tank is designed with basket holder and overflow protection.

7. Fabricated from heavy gauge stainless steel, acid,alkali and corrosion resistant.

8. Digital display showing real time data is intuitive and controllable.

9. Adopting water level pipe and auto heating control system for prolong service life and ensure safety.

10. Caster with brake, safer and more convenient.

Specifications

Model No.	Tank Size (LWH) mm	Capacity (L)	Ultrasonic Frequency (kHz)	Ultrasonic Power (W)	Heating Power (W)	Time Setting	Temp. (℃）
GT SONIC-SD77	550400350	77	28 & 40	0-1200	3000	0-32767s	30-110℃
GT SONIC-SD105	600500350	105		0-1500	4000
GT SONIC-SD144	600600400	144		0-1800	5000
GT SONIC-SD189	700600450	189		0-2400	6000
GT SONIC-SD288	800600600	288		0-3000	7000

Applications

Mainly used in automotive industry, optical industry, electroplating industry, electronics industry, precision hardware industry, medical industry, etc. for cleaning precision mechanical parts, metal parts, optical lens, machine parts, before and after plating, etc.
